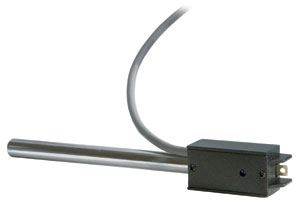

| FORT10g Force Transducer 10g |
| |
| |
|
|
|
|
| |
|
Specifications
| Force Range, full scale |
0-10g |
| Output Sensitivity |
10mv/g@10V, 1000μV/volt/g, nominal |
| INPUT & OUTPUT ResistANCE |
1500MΩ
|
| Resolution |
< 1mg |
| Resonant Frequency |
450 Hz |
| Linearity Error |
<0.2% of full scale |
| Maximum Operating Voltage |
10VDC (-5V ~ +5V or 0 ~ 10V) |
| MAXIMUM APPLIED FORCE |
2x— rated full scale force |
| DRIFT |
<30m/hr |
| DIMENSIONS |
40 x 22 x 19mm
Handle 88mm x 9.78mm diameter
3mm hole in leaf
|
| Weight |
100g |
|
|
|
 |
| |
| |
| |
|
|
|
